CNC punching

Prototypes to full sheet metal work are made easy with Constant’s CNC punching machine

Trumpf

CNC Punching

Our CAD Design Engineers onsite will use their years of experience to determine the best punch press option for your project and costs.

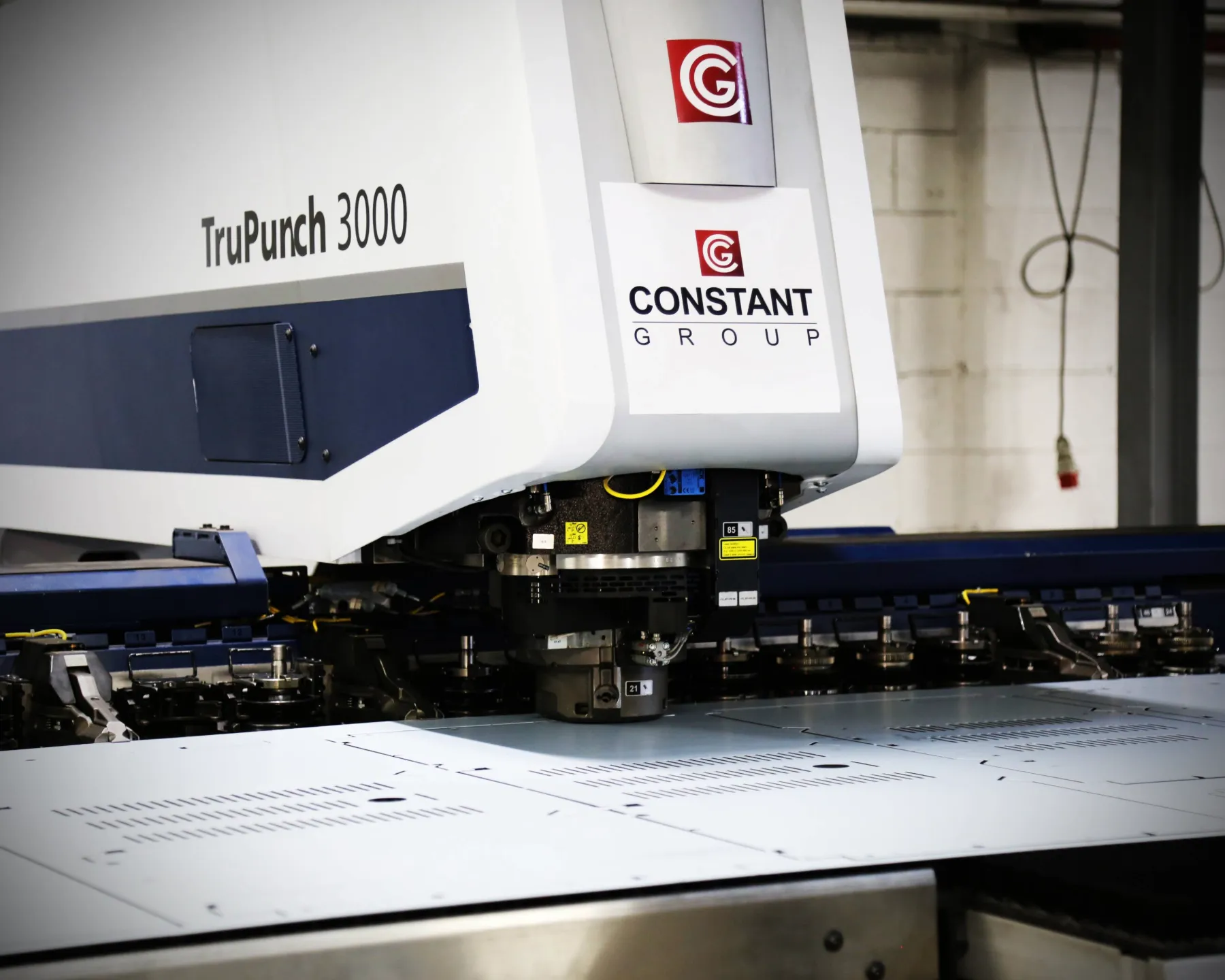

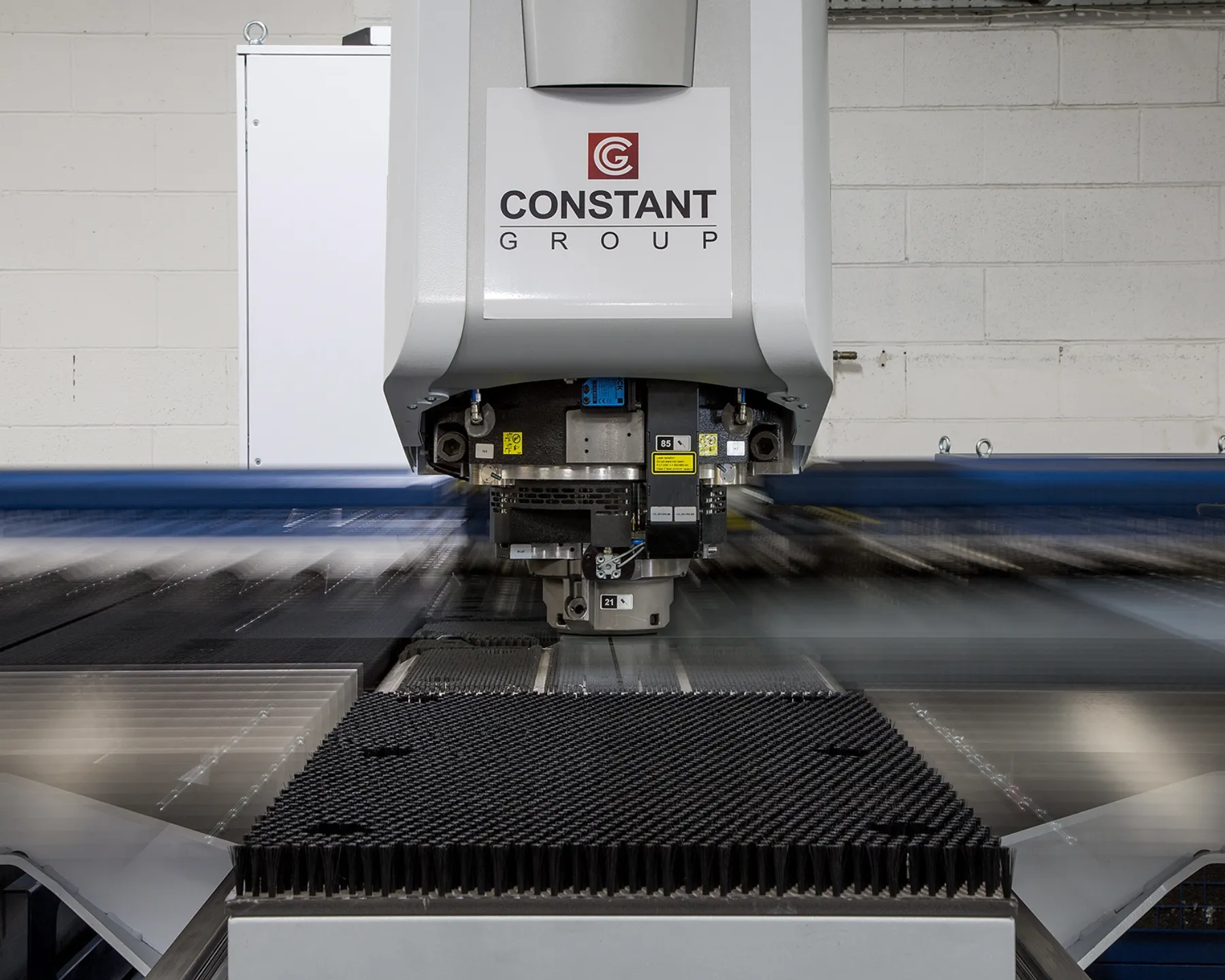

Using the Trumpf TruPunch 3000, suitable for small batch runs and large scale production runs, our typical punching jobs can be as simple as a square, or complex profiles with forms. Classic examples of job runs include ventilation products, brackets for gaming machines and components used on earth moving machines.

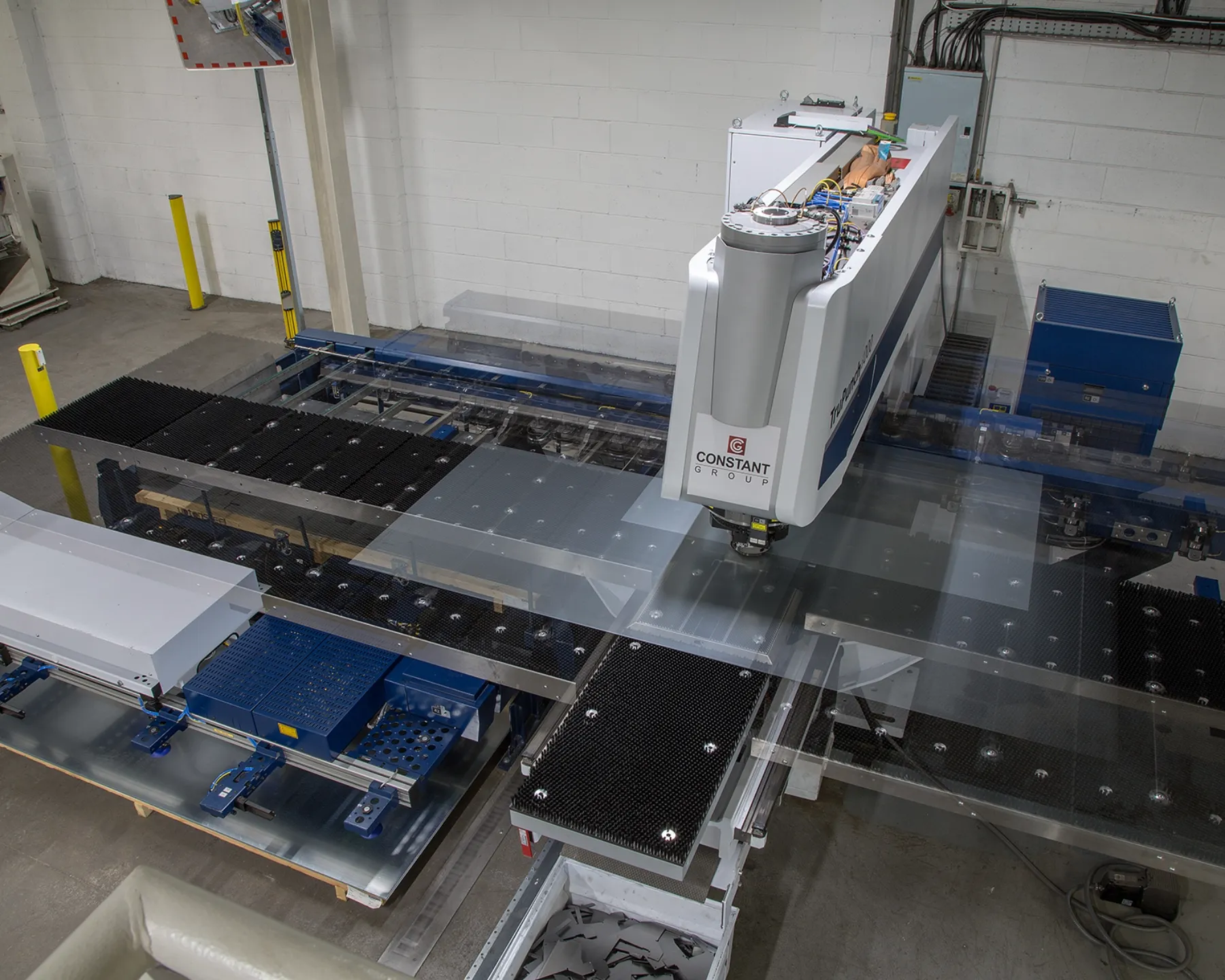

The Trumpf punch machine benefits from low cost tool set ups and cost effective running costs. Twinned with automation to load and unload both raw material and waste material our services can really benefit bottom line part costs, especially considering our ability to run unmanned production, “lights out”.

Range of operations including: piercing, nibbling, embossing, extruding, slotting and recessing, louvering, coining, countersinks, forming tabs, creating ribs and creating hinges.

  • Specialised tooling can be purchased if needed
  • With our STOPA we can store and automate upto 70 tonnes of sheet metal
  • Unmanned production ability for overnight production
  • Material thickness from 0.5mm up to 8mm
  • Punching accuracy of 0.02mm
  • Suitable for a range of materials; mild steel, zintec, galvanised steel and aluminium
  • Punching acceleration rate up to 1400 strokes per min

Case Studies

Outdoor Sport Lighting Unit

Manufactured from 2mm thick aluminium makes for light work by our TruPunch 3000 with one of our latest case studies following the manufacture of sport outdoor lighting units.

Electric Box Part Samples

These electric box part samples for an air conditioning client were manufactured from 0.9mm thick galvanised steel on our TruPunch 3000.

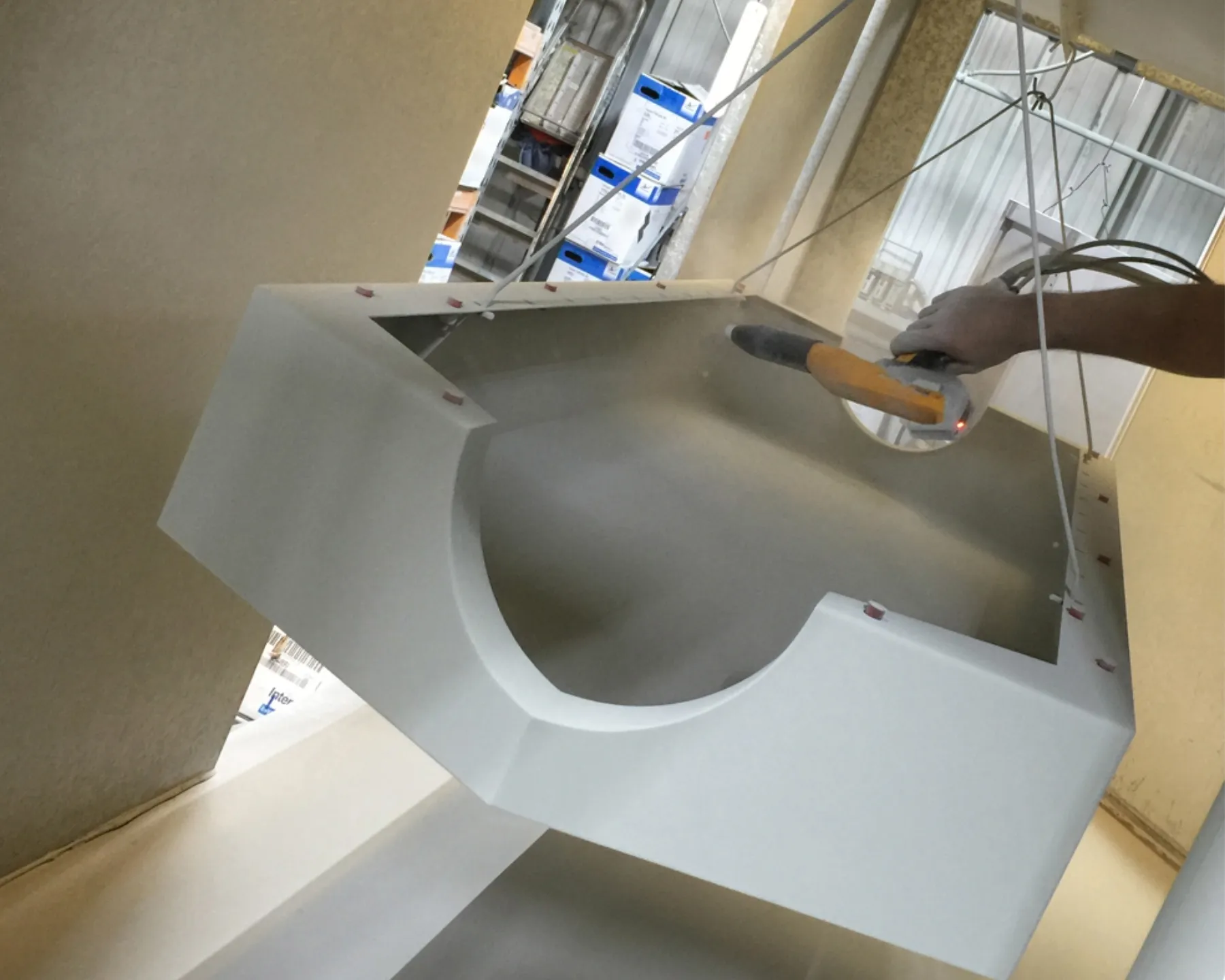

Mobile Phone Mast Enclosure

Our regular batch production of mobile phone enclosures are part cut on our laser cutter, and part cut on our TruPunch 3000 from a special grade 1.5mm stainless steel.
